YAMAHAXDA-QS5400RK

Name: YAMAHAXDA-QS5400RK
SKU: 00050
Price: 2399.0 EUR
Availability: InStock

Magasin / YAMAHA / HAUTE FIDELITE / Passerelle MusicCast

€2,399.00

En stock

Détails du produit

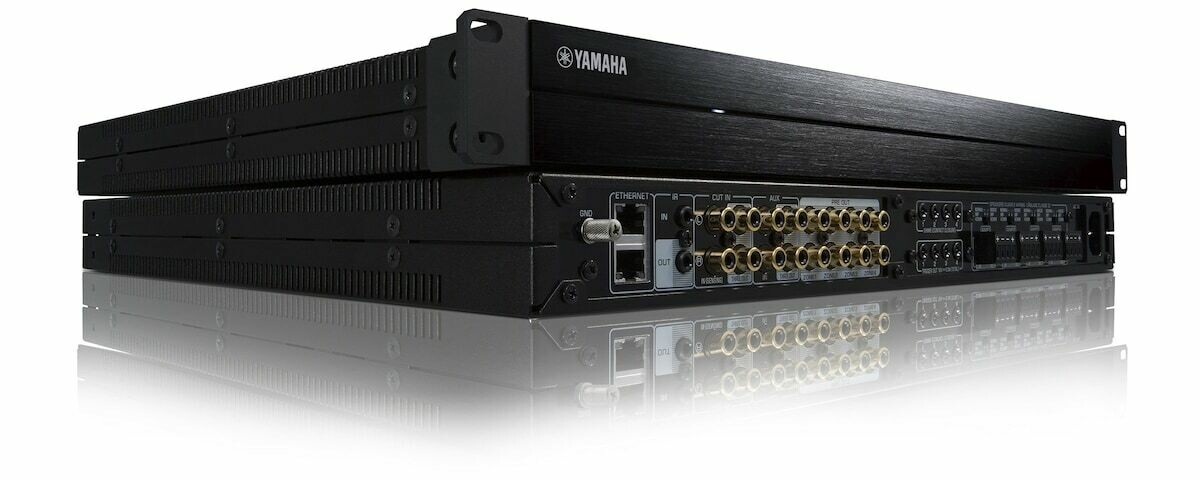

	XDA-QS5400RK
Multi-Room Amplifier
Network Section	File Format	MP3 / WMA / MPEG-4 AAC, ALAC: up to 96 kHz / 24-bit, WAV / FLAC / AIFF: up to 192 kHz / 24-bit
Ethernet	Yes (2 terminals)
AirPlay	Yes
Audio Specifications	Channel	8 channel (2 channel x 4)
Minimum Speaker load Capability	4 ohm
BTL Connection	Yes
Speaker Output Terminal	4 (Euroblock)
Preout Terminal	4
Audio Input Terminal	RCA: 2 (CUT IN, AUX), USB: 4
Audio Output Terminal	RCA (2-ch through out): 2 (CUT IN, AUX)
Trigger In / Out	0 / 4
Remote In / Out	1 / 1
Chime	4
Rated Output Power (1 kHz, 0.9% THD, 2ch driven)	Normal (4 / 8 ohms): 90 / 50 W, Bridge (8 ohms): 100 W
Rated Output Power (1 kHz, 0.9% THD, 1ch driven)	Normal (4 / 8 ohms): 100 / 50 W, Bridge (8 ohms):200 W
Dynamic Power (20 Hz-20 kHz, 0.08% THD, 2ch driven, 20 ms burst)	Normal (4 / 8 ohms): 80 / 40 W, Bridge (8 ohms): 150 W
Dynamic Power (1 kHz, 0.9% THD, 2ch driven, 20 ms burst)	Normal (4 / 8 ohms): 100 / 50 W, Bridge (8 ohms): 200 W
Dynamic Power (1 kHz, 0.9% THD, All ch driven, 20 ms burst)	Normal (4 / 8 ohms): 80 / 50 W, Bridge (8 ohms):170 W
Maximum Effective Output Power	[1-ch driven, 1 kHz, 10% THD] Normal (4 / 8 ohm): 130 / 65 W, Bridge (8 ohm): 260 W
Total Harmonic Distortion	[SP OUT, 20 Hz-20 kHz, 25 W, 8 ohm] 0.04%, [PRE OUT, 20 Hz-20 kHz, 1 V] 0.005%
Frequency Response	[1 kHz + 0 / -3 dB] PRE OUT NET / USB IN, AUX IN: 10 Hz-22 kHz, SP OUT NET / USB IN, AUX IN: 10 Hz-22 kHz
Signal to Noise Ratio	[PRE OUT NET / USB IN] 114 dB, [PRE OUT AUX IN] 108 dB, [SP OUT NET / USB IN] 106 dB, [SP OUT AUX IN] 104 dB
Rated Output Level / Output Impedance	[PRE OUT L / R, 1 kHz] 2.0 V / 470 ohm
Maximum Output Level	[PRE OUT L / R, 0.9% THD] 4.0 V
Maximum Input Signal	[PRE OUT L / R, 0.9% THD] 2.4 V
Gain	[SP OUT 1 V Input] 25.8 dB
Input Sensitivity	[1 W Power, 8 ohm] 150 mV, [MAX (50W) Power, 8 ohm] 1.0 V
Web Setup	Yes
Direct Mode	Yes
Monaural Downmix	Yes (stereo playback or monaural downmix selectable)
Compressed Music Enhancer	Yes
Volume Adaptive EQ	Yes
Volume Control	Support Terminals: PRE OUT / SP OUT, Range: Mute, -80 dB ~ 0 dB, Step: 0.5 dB
EQ Characteristics	[Bass] Variable Width: +6.0 dB ~ -6.0 dB / 0.5 dB step, Centre Frequency: 350 Hz, [Mid] Variable Width: +6.0 dB ~ -6.0 dB / 0.5 dB step, Centre Frequency: 1.1 kHz, [Treble] Variable Width: +6.0 dB ~ -6.0 dB / 0.5 dB step, Centre Frequency: 3.5 kHz
Bass Extension	Yes
General	Power Consumption	130 W, [All Zone On] No Signal Condition: 40 W, [All Zone Off] Chime On: 18.2 W, Cut In Power On Enable: 18.2 W
Standby Power Consumption	Network Standby Off: 0.2 W, Network Standby On(1 Zone): 3.2 W, Network Standby On(All Zone): 6.0 W
Power Management (Auto Power Standby)	5 / 20 min, 2 / 4 / 8 / 12 hours selectable
Dimension (W × H × D) mm	[Table Top Mount with Adhesive Feet] 437 x 46 x 443 mm; 17-1/4” x 1-3/4” x 17-3/8”, [Table Top Mount with Adhesive Feet and Faceplate] 437 x 46 x 453 mm; 17-1/4” x 1-3/4” x 17-7/8”, [Rack Mount] 481 x 44 x 443 mm; 18-7/8” x 1-3/4” x 17-3/8”, [Rack Mount with Faceplate] 481 x 44 x 453 mm; 18-7/8” x 1-3/4” x 17-7/8”
Weight	6.3 kg; 13.9 lbs.
