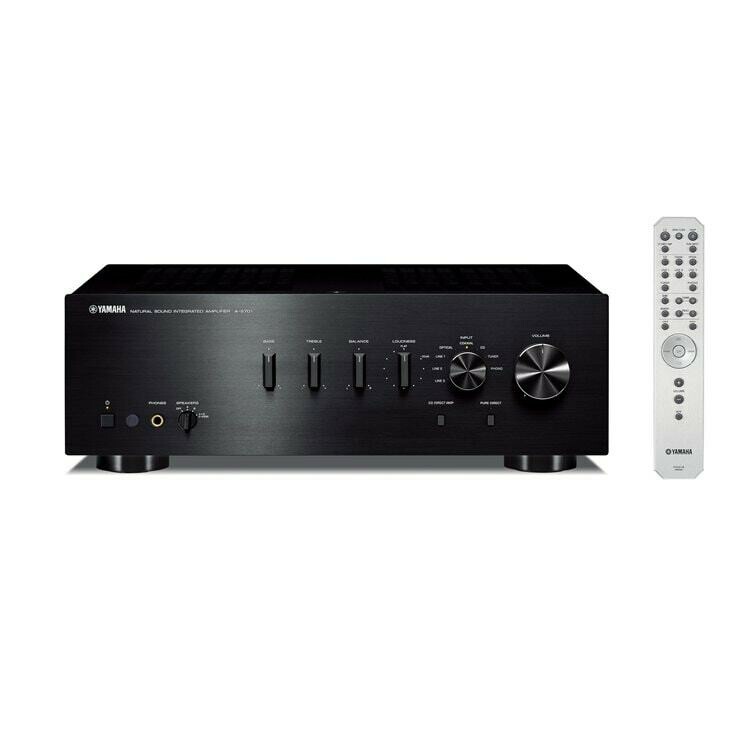

A-S701 | |
---|---|
Specifications | |
Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz) | 100 W + 100 W (0.019% THD) |
Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe) | 160 W + 160 W |
High Dynamic Power/Channel (8/6/4/2 ohms) | 140/170/220/290 W |
Damping Factor | 240 |
Frequency Response | 10 Hz-100 kHz +/-1.0 dB |
Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz) | 0.019% (50 W/8 ohms) |
Signal-to-Noise Ratio (CD) | 99dB (input shorted, 200 mV) |
Audio In / Out | 8 / 2 |
Digital Input | Yes (optical / coaxial) |
Subwoofer Out | Yes |
DC out | Yes |
Pure Direct | Yes |
ToP-ART | Yes |
Switchable CD Direct Amplification | Yes |
Standby Power Consumption | 0.5W |
Power Management (Auto Power Standby) | Yes |
Dimensions (W x H x D) | 435 x 151 x 387 mm; 17-1/8” x 6” x 15-1/4” |
Weight | 11.2 kg; 24.7 lbs. |
