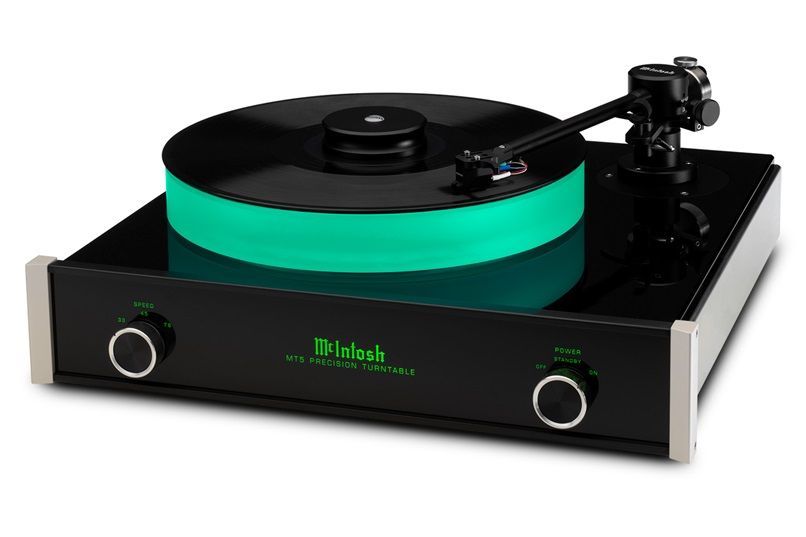

MT5

CARTRIDGE SPECIFICATIONS

• Cartridge Type

  Moving Magnet

• Output Level

  2.5 mV at 5 cm/s

• Load Impedance

  47K Ohms recommended (Preamp MM Input)

• Frequency Response

  12Hz to 35kHz

• Channel Separation

  30dB at 1kHz

• Compliance

  12 x 10-6 cm/dyne

• Recommended Tracking Force

  2.0 g

• Channel Difference

  Less than 0.5dB at 1kHz

• Total Mass

  6.5 g

• Stylus

  Extended Line Contact

• Cantilever Material

  Aluminum

TONEARM SPECIFICATIONS

• Bearing

  Magnetic Sapphire and Ceramic

• Arm Tube

  Dural-Aluminum

• Counterweight

  Eccentric

• Adjustments

  Vertical Tracking Angle, Antiskate, Azimuth

TURNTABLE SPECIFICATIONS

• Playback Speeds

  33-1/3, 45 and 78 rpm

• Motor Type

  DC Motor with Stainless Steel Brushes

• Speed Control

  Servo System

• Platter

  Silicon Acrylic

• Platter Bearing

  Magnetic Suspended Ceramic

• Signal To Noise Ratio

  36dB - 41dB

• Wow & Flutter

  0.15% - 0.20%

CONNECTIVITY

• Stereo Outputs Unbalanced
