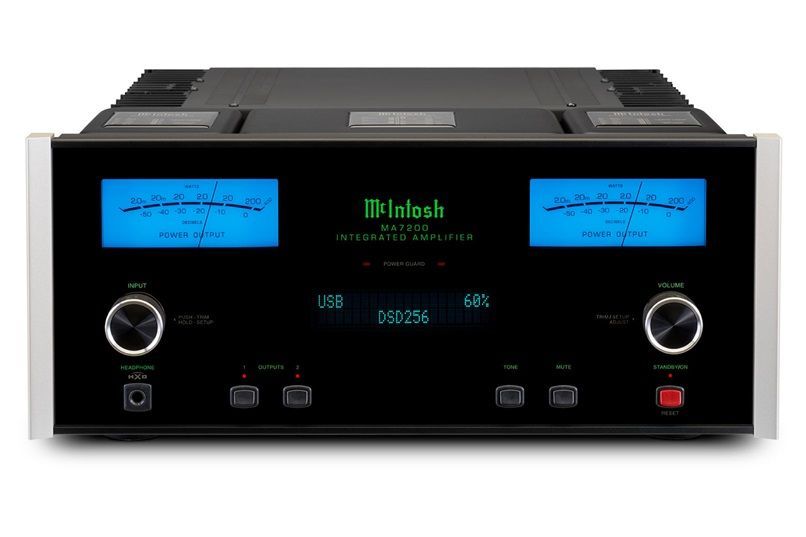

MA7200 - 2

ELECTRONIC SPECIFICATIONS

• FTC Power Output Rating

  200 W

• Power Output per Channel

  200 W into 2, 4, or 8 ohms

• Number of Channels

  2

• Rated Power Band

  20Hz to 20kHz

• Total Harmonic Distortion

  0.005%

• Dynamic Headroom

  2dB

• Frequency Response +0,-0.5dB

  20Hz to 20kHz

• Frequency Response, +0, -3dB

  10Hz to 100kHz

• Sensitivity Phono (Moving Coil)

  0.25mV

• Sensitivity Phono (Moving Magnet)

  2.5mV

• Sensitivity High Level (Balanced / Unbalanced)

  0.5V/0.25V

• Sensitivity (Power Amp input)

  1.4V

• Signal To Noise Ratio (Moving Coil)

  80dB

• Signal To Noise Ratio (Moving Magnet)

  82dB

• Signal To Noise Ratio (High Level)

  95dB

• Signal To Noise Ratio (Power Amp input)

  113dB

• Input Impedance (Balanced / Unbalanced)

  20K/20K

• Damping Factor

  >40

• Maximum Output (Balanced / Unbalanced)

  8V Unbalanced
