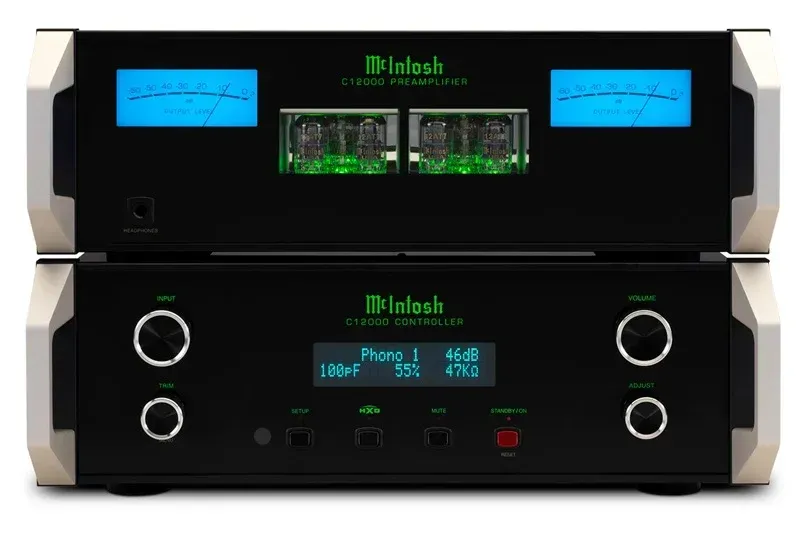

C12000 - 2

ELECTRONIC SPECIFICATIONS

• Number of Channels

  2

• Total Harmonic Distortion

  High Level: 0.005%
  Phono: 0.05%

• Frequency Response

  +0, -0.5dB from 20Hz to 20kHz
  +0, -3dB from 10Hz to 100kHz

• Maximum Volts Out (Balanced / Unbalanced)

  20V RMS / 10V RMS

• Sensitivity High Level (Balanced / Unbalanced)

  900mV / 450mV

• Sensitivity Phono (Moving Coil)

  0.25 – 2.5mV

• Sensitivity Phono (Moving Magnet)

  5 – 10mV

• Signal To Noise Ratio (High Level)

  107dB

• Signal To Noise Ratio (Moving Coil)

  79dB

• Signal To Noise Ratio (Moving Magnet)

  83dB

• Voltage Gain (High Level)

  15dB

• Voltage Gain (Moving Coil)

  58 – 64dB

• Voltage Gain (Moving Magnet)

  40 – 46dB

• Input Impedance (Balanced / Unbalanced)

  50K ohms, 25K ohms
